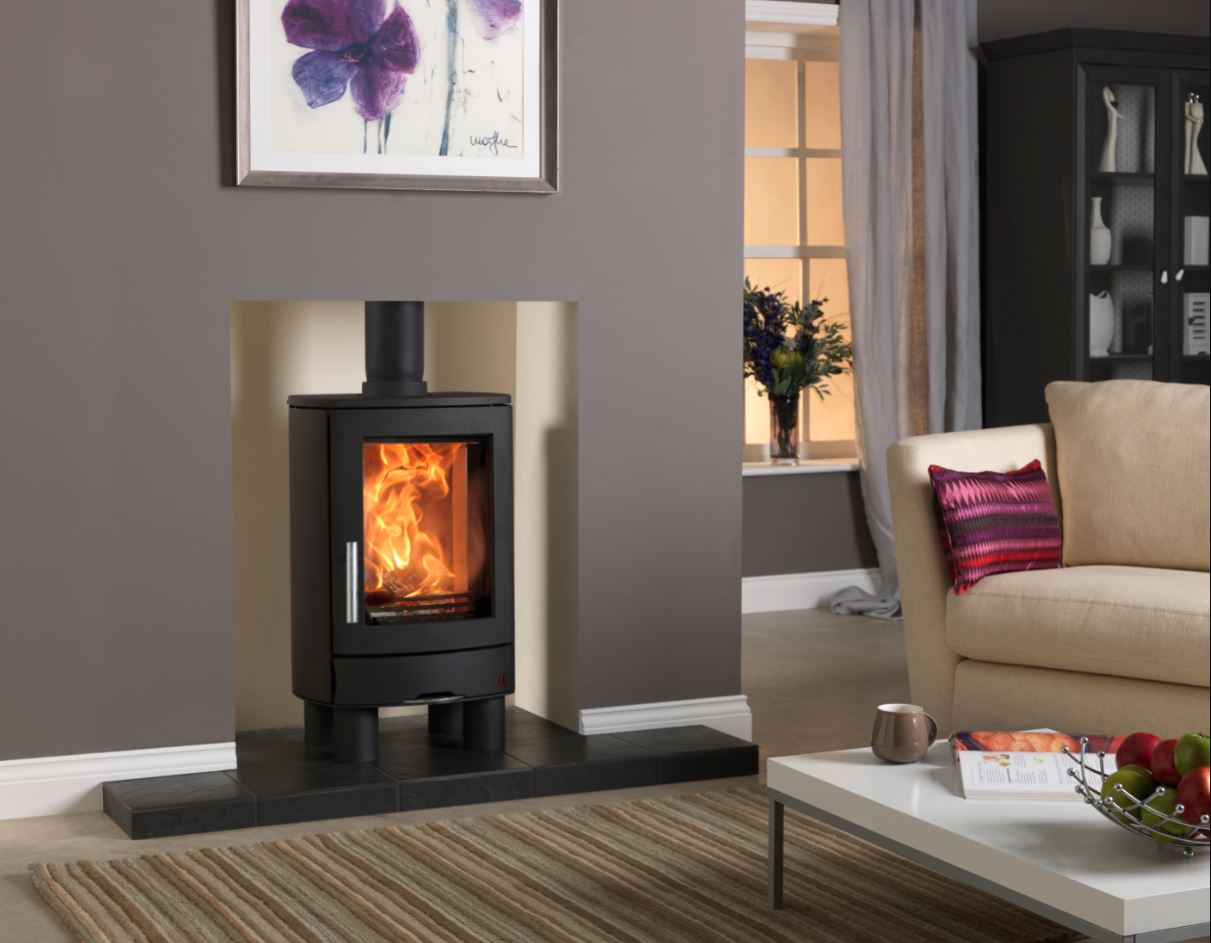

ACR - Neo 1F
ACR - Neo 1F
The Neo Eco models are woodburning and being a DEFRA exempt stove means that you can burn wood in smoke controlled areas allowing you to enjoy the pleasures of a real fire wherever you live.
As with all the Neo Eco stoves, the ashpan slides out towards you to enable the lid to be fitted to the ashpan. Then just simply lift the ashpan out and carry outside safe in the knowledge that the ashes are not going to blow around in the wind. There is the option to add a Direct Air supply to the NEO1F-ECO model making it ideal for new build installations. By adding the additional rear heat shield, the clearances to combustibles can be reduced considerably (for more information on this please refer to the instruction manual).
Specifications
| Spec | Value |
|---|---|
| Height | 820mm |
| Width | 490mm |
| Depth | 397mm |
| Output Range | 5kw nominal (2.5Kw min / 7Kw max) |
| Efficiency | 72.3% gross 79.4% nett |
| Hearth Requirement | Superficial non combustible 12mm hearth required (see Bldg Regs) - below 100 degrees |
| Weight | 90kg |
| Flue Diameter | 125mm |
| Smoke Exempt? | Yes - approved by DEFRA for woodburning in smoke contolled areas |
| Log Length | 40cm |
| EEI classification for ecolabelling 2018 | A |
